Name: Android Tablet 7" NITA Autoid PAD มีหัวอ่านบาร์โค้ด 1D 2D ในตัว สำหรับงานคลังสินค้า ทนทานสูง
SKU: 5344
Availability: OutOfStock

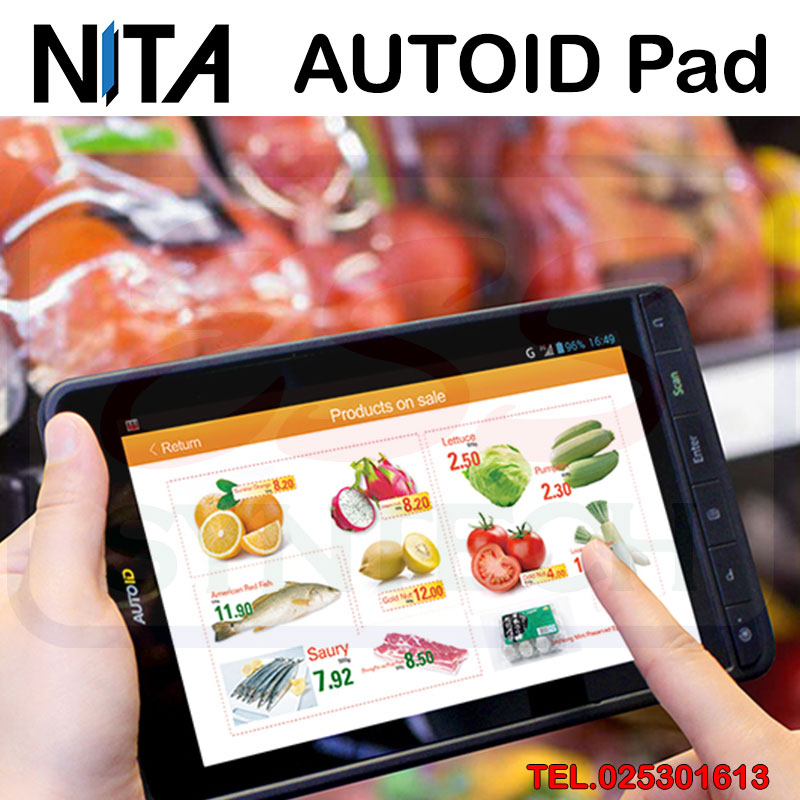

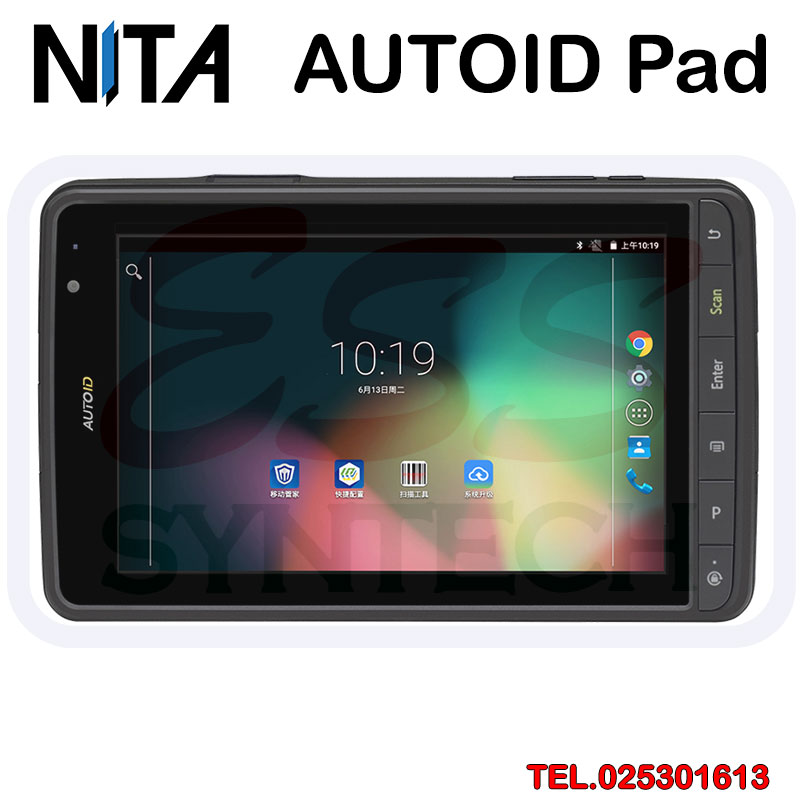

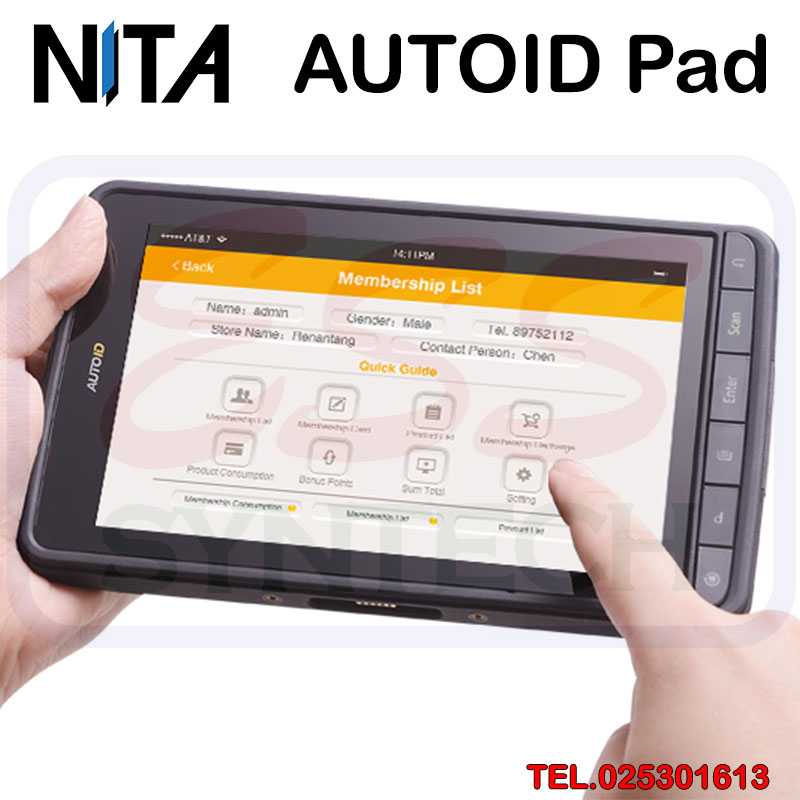

Android Tablet 7″ NITA Autoid PAD มีหัวอ่านบาร์โค้ด 1D 2D ในตัว สำหรับงานคลังสินค้า ทนทานสูง

Excellent performance of man-machine interaction:
With 7″ industrial display, 1280*800 highdefinition, 5-place touchable, it’s convenient to see more details of reportsclearly. 11mm industrial and thin body, main machine adopted streamlineddesign, it is only weighs 485g, which is comfortable grip and easy to carry.

All-weather application design:
It fully meets the operations under the heat, cold, rain and snow and other harsh environments, and satisfies the operation for along time.

Leading performance:
It supports 2.4/5Gdual-band WIFI simultaneously,optimizes roaming design, which solve the problems of roaming, electromagneticinterference, offline in warehouse. With the usage of N6630 barcode scanengine, special rapid deployment technology of camera, safety managementmechanism, which remotes management and supports 4G and NFC.

สินค้าหมดแล้ว

คำอธิบาย

1. NEW AUTOID^® PAD PERFORMANCE CHARACTERISTICS

CPU	Cortex™-A53 Quad core 1.2GHz
Operating System	Android 5.1
RAM	2GB
ROM	16GB
Expansion Slot	Micro SD Card, 32GB SDHC compatible
Interface/Communication	Industrial Micro USB interface, support (USB2.0 High Speed, support OTG)
Interface/Communication	Micro SIM Card, TF Card
Keypad	6 main keys
Keypad	3 side keys
Display	7″ full-view LCD, capacitive, touch-with or without a thick glove/ with dry or wet hand, touch pen
Display	1280(H)×800(W) WXGA
Power Supply	Non-removable 6200mAH rechargeable Li-ion battery
Power Supply	Side interface: standard Micro USB charging interface, intelligent identification of PC and special charger Contact at the bottom of the tail plug interface: support for charging
Battery Performance	Continue to work: more than 12 hours (normally display on and scan once every 6 seconds and WLAN transmission) RTC time: more than 168 hours Dormancy standby: more than 1 months (GPRS) online, offline (GPRS) is greater than 1.5 month
Notification	Sound, vibration, LED indicator light
Audio	Built-in double speakers, built-in microphone, the 3.5 mm stereo headset interface
Sensor (optional)	Acceleration sensor, light sensor, electronic compass and gyroscope
Dimension	123(H)×199(W)×15(T) mm (21mm at barcode engine)
Weight (including standard battery)	485g (Including battery depends on different configurations)
Operating Temp	-20℃ to +50℃
Storage Temp	-40℃ to +60℃
Humidity	5% to 95% RH non-condensing
Sealing Grade	IP65 (Credit card function does not support)
Drop Specification	1.2m (concrete)
ESD	±15kV Air discharge, ±8kV direct discharge

2. NEW AUTOID^® PAD DATA CAPTURE OPTIONS

Function 1	2D Image Scan Engine
Sensor resolution	844(H)×640(V)
Rotate	360°
Pitch Angle	±45°
Skew Tolerance	±65°
Scan Depth	7cm (5mil), 36cm (20mil)
Code Support	Aztec Code, Codabar, Codablock F, Code 11, Code 128, Code 2 of 5, Code 39, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN 8, EAN-UCC Composite Codes, EAN-UCC Emulation, Interleaved 2 of 5, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI,PDF417 Postal Codes (Australian Post, China Post, Japanese Post, Planet Code,Postnet), QR Code, RSS Expanded, RSS Limited, RSS-14, TCIF Linked Code 39, Telepen, UPC-A, UPC-E etc.
Light source system	White light, laser aiming
Minimum printing contrast	20%
Function 2	GPS Location information collection
Location	GPS+GLONASS+ Beidou Navigation, support AGPS
Working Mode	GPS main location, Beidou Navigation and GLONASS assistant location
Frequency	GPS: L1 (1.575GHz); Beidou Navigation: B1 (1.561GHz); GLONASS: L1 (1.602GHZ)
Accuracy	5-10meter (OPEN SKY)
Function 3	Front Camera
Maximum Resolution	1616V×1232H pixel
Camera	Fixed focus
Pixel	2.0 megapixel
Function 4	Rear Camera
Maximum Image Resolution	3264×2448 (taking pictures), 720p 30fps (Camera)
Pixel	8.0 mega-pixel
Camera	Auto-focus
Flash	Support double flashlights
Function 5	RFID Read/Write (HF)
Standards Support	Support ISO15693, ISO14443A/B (no encryption protocol), ISO14443A tag with encryption protocol (Mifare one S50,S70 and compatible with CARDS); Support NFC protocol Support for the two generation ID card reading
Operating Frequency	HF frequency band 13.56MHz
Reading Distance	Reading distance 0~5cm (ISO15693), 0~3.5cm (ISO14443A/B) (Associated with label)
Function 6	Magnetic card, IC card
Magnetic Card	Meet ISO7811 standard Card feeding speed10~120cm/s The magnetic coercivity range: 300~4000 Oe Magnetic density: First rail 210BPI, Second rail 75BPI, Third rail 210BPI Available configuration: 1: First rail or Second rail or Third rail 2: First rail and Second rail 3: Second rail and Third rail 4: First rail and Second rail and Third rail
IC Card	Meet ISO7816 standard Support membership card, prepaid cards and other common IC card, 4442 card support

3. NEW AUTOID^® PAD WIRELESS DATA COMMUNICATION

Function 1	WLAN WIFI
Protocol	IEEE 802.11a/b/g/n (2.4G/5G dual-frequency WIFI)
Frequency Range	Depending on the country (region), 2.4GHz is 2.412GHz-2.472 GHz; 5GHz is 5.170GHz-5.825GHz
Working Channel	CH1~CH13, CH34~CH140, CH149~CH165
Security	OPEN, WEP, WPA2-PSK (TKIP+AES), TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLSMD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES etc.
Transmission Distance	2.4G: more than 150 meters, 5G : more than 100 meters (industrial-grade AP, empty region)
Data Rate	802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps (20MHz, Long GI, 800ns) 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2Mbps (20MHz, short GI, 400ns)
Function 2	WWAN (All Network: 7 mode 15 frequency)
Frequency Band	GSM: 850/900/1800Mhz TD-SCDMA: Band34, Band39 WCDMA: Band1, Band5 CDMA 1x /EVDO: BC0 TDD-LTE: Band38, Band39, Band40, Band41 FDD-LTE: Band1, Band3
Communication Rate	GPRS: DL / UL171.2kbps; EDGE: DL / UL384 kbps TD: DL 2.8 Mbps / UL 2.2 Mbps DC-HSPA+: DL 42Mbps / UL 5.76 Mbps CDMA1x: DL 153.6kbps/ UL 153.6kbps; EVDO: DL 3.1 Mbps / UL 1.8 Mbps TDD-LTE: DL 117 Mbps / UL 30 Mbps(CAT4) FDD-LTE: DL 150 Mbps / UL 50 Mbps(CAT4)
Function 3	WPAN Bluetooth
Standard	Bluetooth 4.0 (Dual mode, support BLE)
Power	Class II
Distance	>20m (industrial-grade Bluetooth adapter)

4. NEW AUTOID^® PAD THIRD PARTY APP DEVELOPMENT SUPPORT

System Software	Android 5.1
System Programming Environment	Android IDE (Eclipse)

5. NEW AUTOID^® PAD PERIPHERALS AND ACCESSORIES

Standard Accessories	The host charger 5V/2.5A×1, Micro USB cable×1
Optional Accessories	Single-slot multifunctional charging base, Tail serial cable, Hand belt + Hand belt buckle, RS485 cable, Magnetic suction cable, Mounting bracket, Vehicle mount, knapsack, Touch pen
